Intro
Paico® measuring and mixing cylinders are manufactured from borosilicate glass 3.3 and therefore are very resistant to mechanical and thermal stresses. Measuring cylinders are for holding and simultaneously measuring different liquid amounts. Mixing cylinders are for diluting solutions and mixing several components in a given quantity ratio. Their large hexagonal base prevents the cylinder from rolling. The base is equipped with three knobs that increase its stability. The cylinders have uniform wall thickness over the entire measurement range, so wedge errors are avoided. Calibration is based on contained fluid (“In”) at a +20°C reference temperature, which means that when the circular graduation mark is reached, exactly the specified liquid amount is contained in the vessel. Thus the desired concentration can be precisely set. Volume content tolerances for measuring and mixing cylinders conform to ISO accuracy limits. Graduations and Inscriptions are printed in amber / white enamel.
For accurate work, Class A certified cylinders are available..

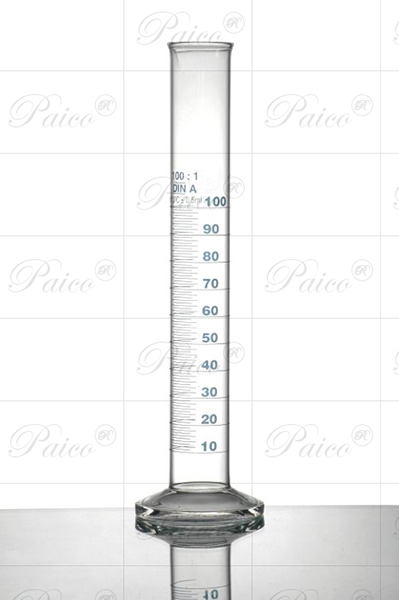

Measuring Cylinders, with plastic bases and protection collar.
| Cat. No. | Cap.(ml) | Sub. Div.(ml) | Tolerance(±ml) | Price (Rs.) |
|---|---|---|---|---|
| 221/1 | 5 | 0.1 | 0.1 | 65.00 |
| 221/2 | 10 | 0.2 | 0.2 | 70.00 |
| 221/3 | 25 | 0.5 | 0.5 | 75.00 |
| 221/4 | 50 | 1.0 | 1.0 | 95.00 |
| 221/5 | 100 | 1.0 | 1.0 | 135.00 |
| 221/6 | 250 | 2.0 | 2.0 | 226.00 |
| 221/7 | 500 | 5.0 | 5.0 | 289.00 |
| 221/8 | 1000 | 10.0 | 10.0 | 490.00 |
Measuring Cylinders, with spout and break resistant collar, Class 'A'.
| Cat. No. | Cap.(ml) | Sub. Div.(ml) | Tolerance(±ml) | Price (Rs.) |
|---|---|---|---|---|
| 222/1 | 5 | 0.1 | 0.1 | 85.00 |
| 222/2 | 10 | 0.2 | 0.2 | 85.00 |
| 222/3 | 25 | 0.5 | 0.5 | 150.00 |
| 222/4 | 50 | 1.0 | 1.0 | 165.00 |
| 222/5 | 100 | 1.0 | 1.0 | 210.00 |
| 222/6 | 250 | 2.0 | 2.0 | 413.00 |
| 222/7 | 500 | 5.0 | 5.0 | 590.00 |
| 222/8 | 1000 | 10.0 | 10.0 | 960.00 |

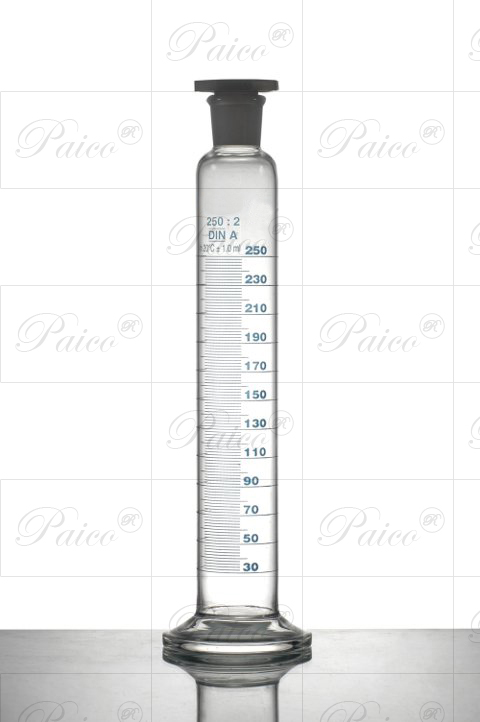

Measuring Cylinders with interchangeable stopper, Class 'A'.
| Cat. No. | Cap.(ml) | Sub. Div.(ml) | Tolerance(±ml) | Price (Rs.) |
|---|---|---|---|---|
| 224/1 | 5 | 0.1 | 0.05 | 150.00 |
| 224/2 | 10 | 0.2 | 0.10 | 155.00 |
| 224/3 | 25 | 0.5 | 0.25 | 225.00 |
| 224/4 | 50 | 1.0 | 0.50 | 235.00 |
| 224/5 | 100 | 1.0 | 0.50 | 390.00 |
| 224/6 | 250 | 2.0 | 1.00 | 523.00 |
| 224/7 | 500 | 5.0 | 2.50 | 1350.00 |
| 224/8 | 1000 | 10.0 | 5.00 | 1593.00 |

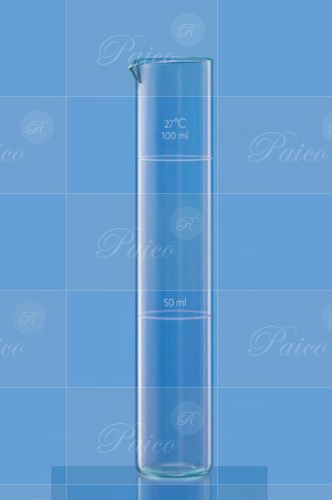

Nessler Cylinder, for colour comparison Class ‘A’, graduated.
| Cat. No. | Cap.(ml) | Sub. Div.(ml) | Tolerance(±ml) | Price (Rs.) |
|---|---|---|---|---|
| 227/1 | 50 | 25 & 50 | 0.4 | 150.00 |
| 227/2 | 100 | 50 & 100 | 0.8 | 198.00 |
